The Grant Power-Head Riveter is the most durable riveter offered in the world today. Grant Riveters are a 100% guaranteed and placed into service with an unprecedented Two and or Three Year Warranty. Our riveters are designed to meet your specific needs in riveting today and in tomorrows applications. Each riveter, no matter if it is from our pneumatic, hydraulic or servo-electric line offers the most reliable and repeatable riveting cycle day in and day out. You will not be replacing bearings often in our riveting machines. We have designed our units based upon a 100% safety factor. Do not settle for anything less. We offer true Multi-process riveter capable of Orbital, Twin-Spin, Multi-Spin and Spin-Press forming techniques all in the same machine. Typical cycle time is 0.5 to 1.5 seconds with most all riveting applications. Our skilled and highly experienced team will select the right forming technique that lends itself best to your product design. Our product line is rated in mild steel solid rivet diameters ranging from 3mm to 38mm rivet diameter capacity machines. The system typically can utilize a very simple work holding fixture. Since we use controlled rivet forming techniques to fasten the rivet, the tonnage on our machine is much less than all other competitors equipment. Thus making our equipment much more affordable. Let us quote your next riveting system and we will prove it to you.

Pneumatic Power-HeadsSpecialty Power-Heads

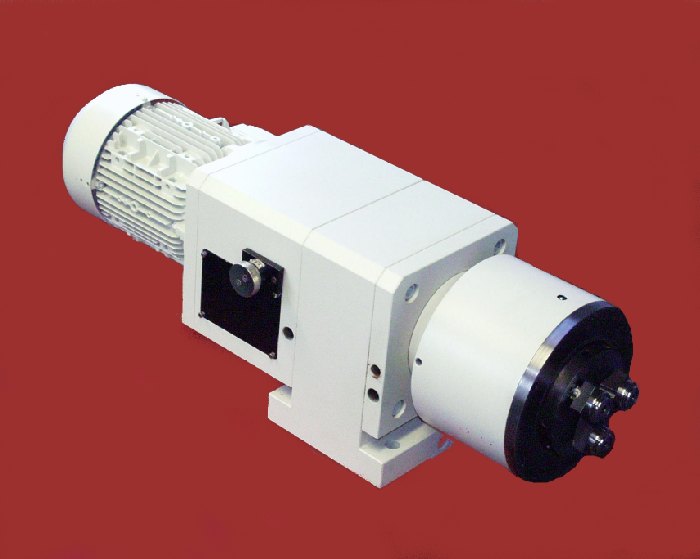

G012 Power-Heads shown with Orbital tooling and Multi-Spin tooling.

Key Benefits

  •  Modular Design
  •  Precision Micrometer Stroke Adjustment
  •  Four Riveting Process - Orbital, Twin-Spin, Multi-Spin & Spin-Press Forming Techniques!
  •  Extremely Fast Cycle Rate
  •  Rivets Fasten with the Best Control
  •  Highest Cost Savings Compared to Any Other Riveting System!



POWER-HEAD RIVETERS

PNEUMATIC

MODEL

G003

G005

G008

G012

G016

Rivet Diameter
Capacity in Mild 1018 Steel

0.118" DIA. (3 mm)

0.196" DIA.
(5 mm)

0.315" DIA.
(8 mm)

0.472" DIA.
(12 mm)

0.630" DIA. (16 mm)

Adjustable Stroke

0 - 1.181"

(0 - 30 mm)

0 - 1.181"

(0 - 30 mm)

0 - 1.771"

(0 - 45 mm)

0 - 1.771"

(0 - 45 mm)

0 - 1.771"

(0 - 45 mm)

Maximum Downward Force

480 lbs @ 80 psi

216 @ 5.5 Kg/Cm²

904 lbs @ 80 psi

400 @ 5.5 Kg/Cm²

2194 lbs @ 80 psi

973 @ 5.5 Kg/Cm²

3783 lbs @ 80 psi

1678 @ 5.5 Kg/Cm²

7760 lbs @ 80 psi

3442 @ 5.5 Kg/Cm²

Motor 3PH, 230/460V, 60Hz

0.25 Hp

0.18 Kw

0.5 Hp

0.37 Kw

0.75 Hp

0.56 Kw

1.0     Hp

0.74 Kw

1.5 Hp

1.12 Kw

Pneumatic Model Riveters are manufactured standard with Festo brand pneumatic controls, Siemens brand electrical controls and SKF brand bearings. We only install the best most available products within our machines. All riveters are tooled with Advance Hard Coated tooling. Grant Riveters is the only riveting manufacture in the world offering Advance Hard Coated tooling as a standard. Grant Advance Hard Coated tooling on average will last 250,000 to 1,000,000 cycles. Our machines are tested and set to your application requirements prior to shipment. Upgrade your riveter with our digital 100% Real-Time Inspection System. This is absolutely the best riveter in the world inspecting 100% of the product that it produces. This machine will not make a mistake ever. Fasten to a pressure and gauge your distance. When you buy a Grant Riveter, you buy it for life! Each Power-Head riveter is shipped with the main solenoid control valves. For additional equipment, please contact the factory at (800) 227-2150.

Current Pricing (as of Tuesday, 12 June 2012)

Pneumatic Power-Head 2007 List Price

Description Model # Price

3MM

003PH $ 4800
5MM 005PH $ 5815
8MM 008PH $ 7150
12MM 012PH $ 8750
16MM 016PH $10250















All prices are based upon application specifications. All Power-Head Riveters less solenoid valves, hoses, fittings, electrics and other devices required for the application. Prices shown are subject to change without notice. Delivery is approximately 6 to 8 weeks. Machine specification are subject to change without notice. Please contact the Grant Riveters Sales Department at (203)-366-4557 or write us at sales@grantriveters.com.
